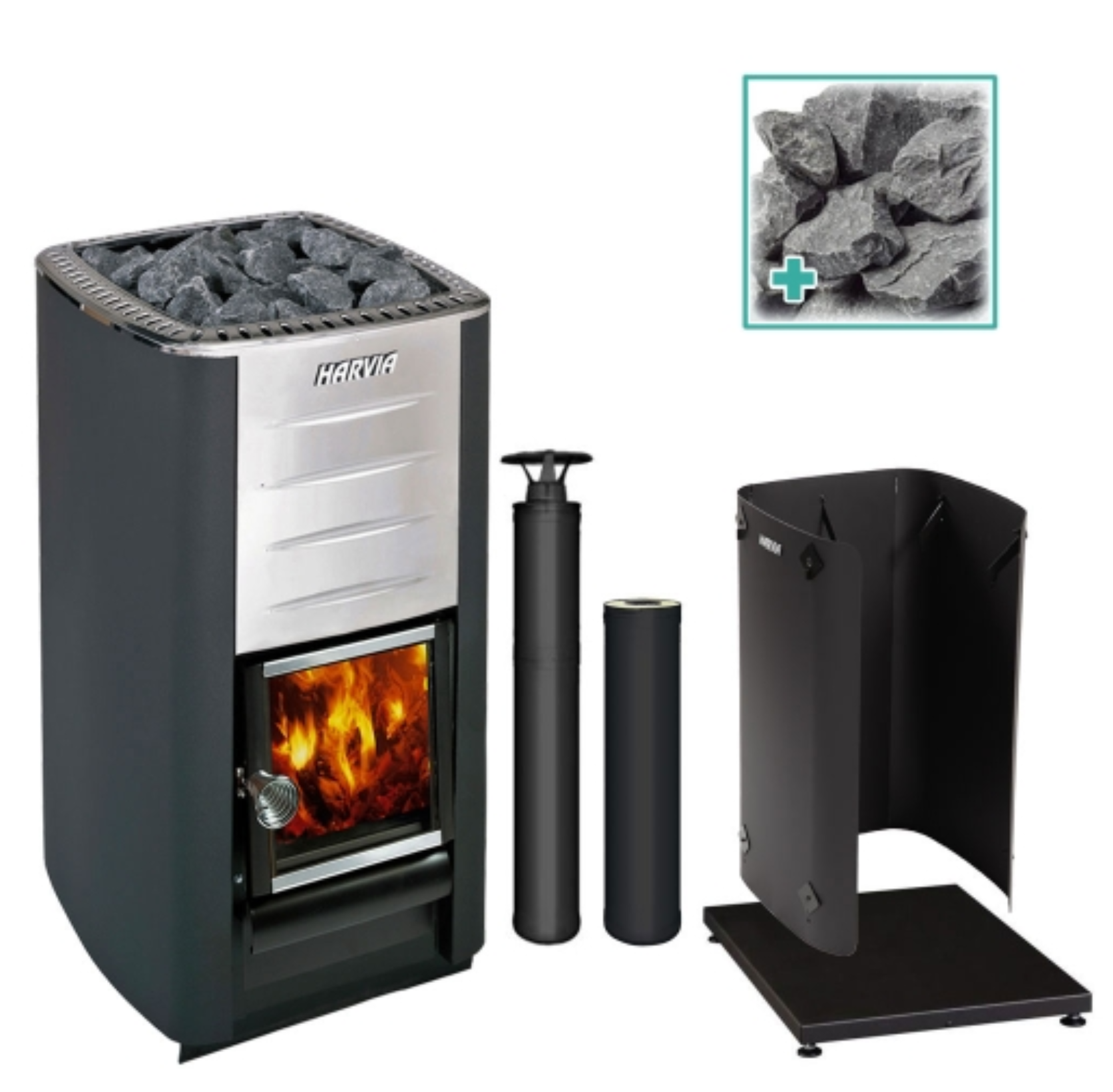

Harvia M3 BK Pkg Wood-Burning Sauna Stove Package, 16.5kW

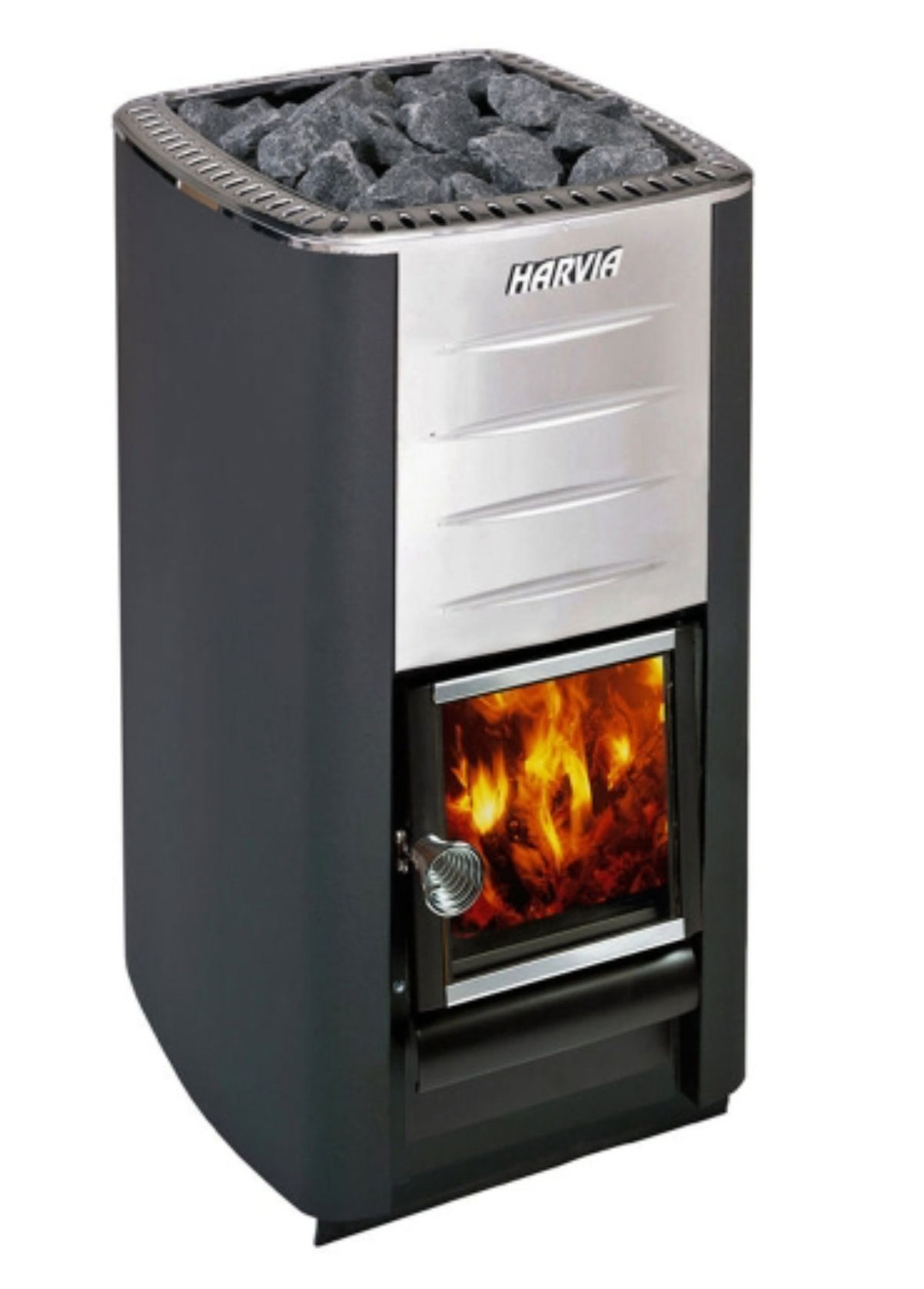

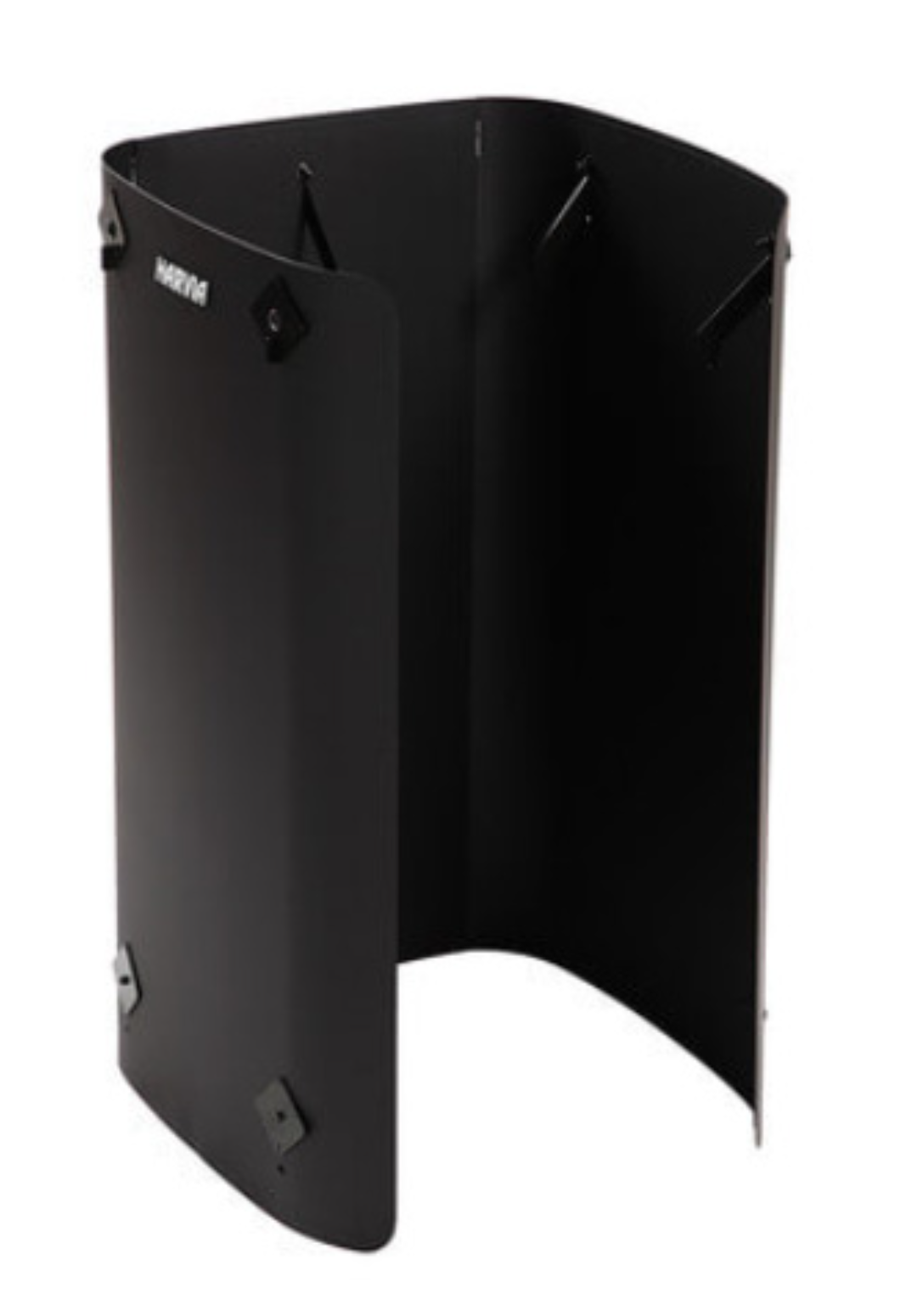

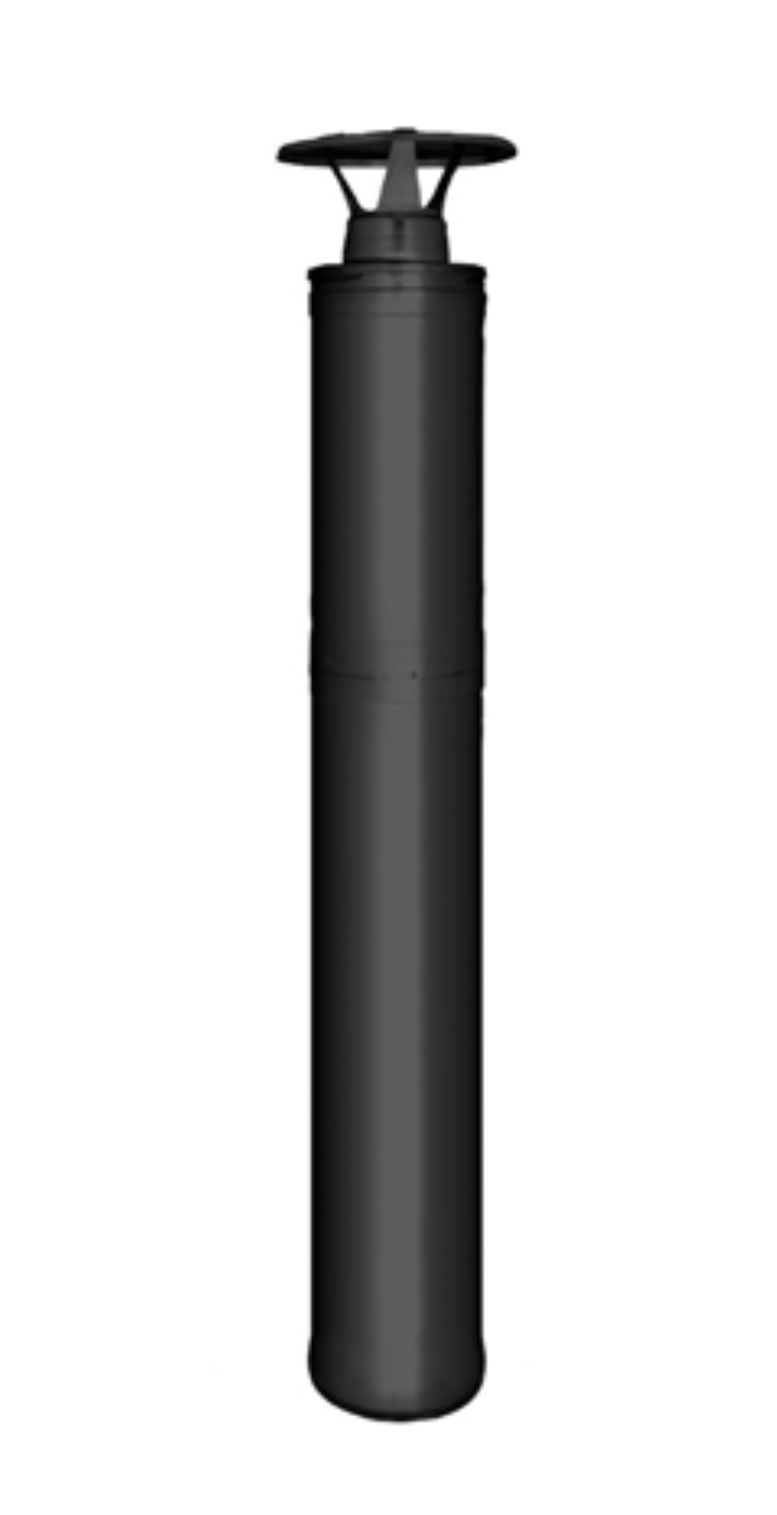

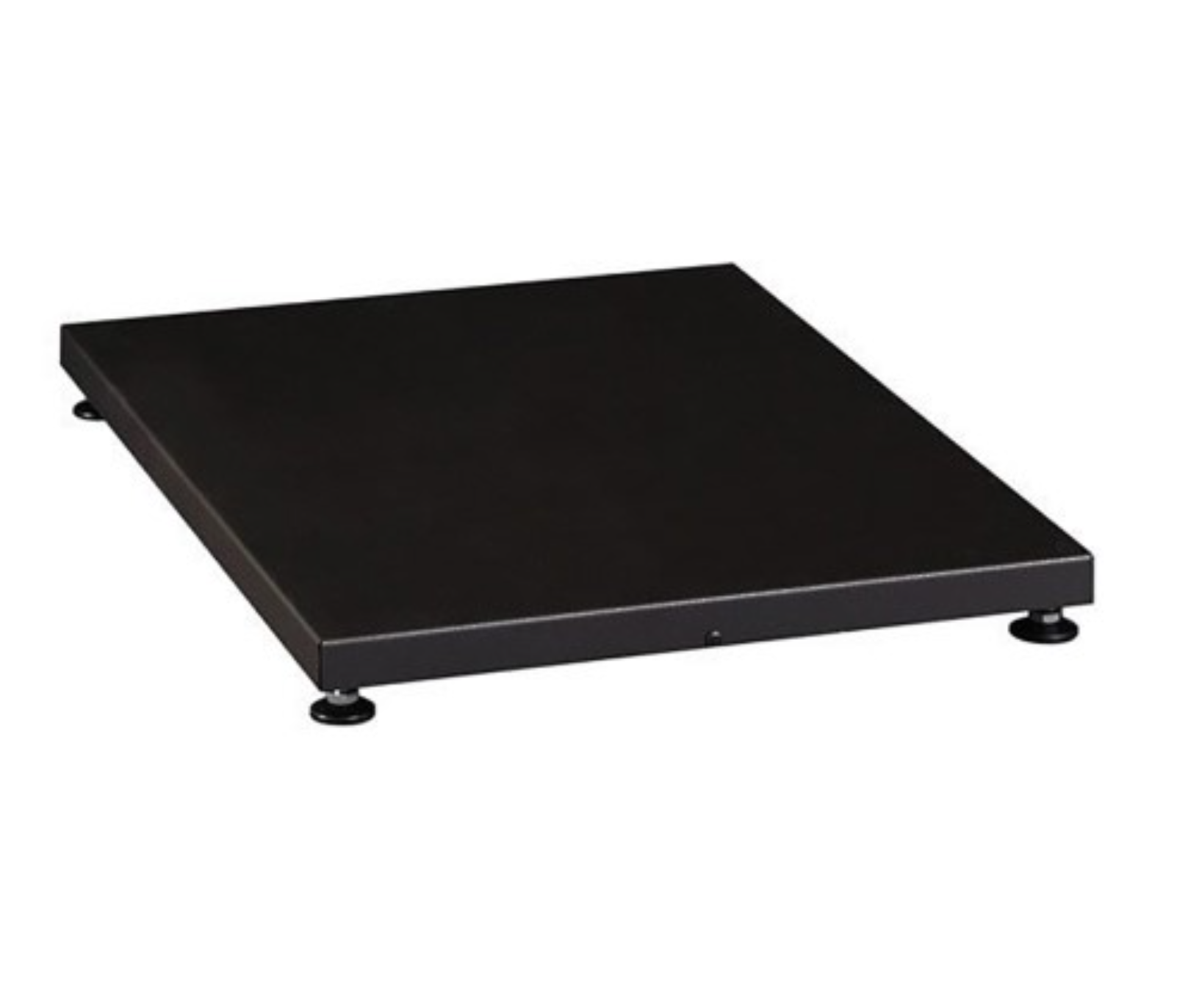

M3 Sauna Stove Wood-burning 16.5kW Elegant graphite black Stainless steel air-flow spoiler Floor installation Designed, engineered, and made in Finland For sauna rooms from 212 to 459 cu. ft. 66 pound stone capacity Dimensions: 15.4"W (39 cm) x 16.9"D (43 cm) x 28.15"H (72 cm) Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use) Protective Bedding Black aluminum-zinc coated steel Helps protect floors Adjustable feet Can be installed on a sloping floor For wood-burning sauna stoves Dimensions: 18.5"W (47 cm) x 26.2"D (67 cm) x 2.4"-3"H (6-8 cm) Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use) Protective Sheath Black steel 3-sided sheath Reduces safety distance to combustible materials Dimensions: 17.9"W (46 cm) x 19.3"D (49 cm) x 31.5"H (80 cm) Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use) Chimney Kit Black powder-coated steel CE marking Mineral wool insulation material Mounts in vertical position Able to be easily extended Touch protection not needed if installed in a sauna Soot fire resistant Freeze thaw resistant Works with wood-burning sauna stoves Works with smaller fireplaces Works with iron stoves Designed, engineered, and made in Finland Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 59.1"H (150 cm) Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use) Chimney Extension Black powder-coated steel Prevents movement caused by temperature changes Can be installed indoors and outdoors Designed, engineered, and made in Finland Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 39.4"H (100 cm) Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use) Sauna Stones Olivine diabase sauna stones Split-face shape Durable with high-heat capacity Stones range from 4" to 6" (10-15 cm)

Model M3 Kilowatt Rating 16.5kW Primary Fuel Wood Maximum Firewood Length 14" (35 cm) Diameter of Firewood 3-6" (8-15 cm) Minimum Cubic Feet 212 cu. ft. Maximum Cubic Feet 459 cu. ft. Minimum Room Height 47" (120 cm) Flue Connection Location Top and Back Heater Weight 99 lbs (45 kg) Shipping Weight with Sauna Stones 165 lbs (75 kg) Width 15.4" (39 cm) Depth 16.9" (43 cm) Height 28.15"H (72 cm) Model WL100 Construction Material Stainless Steel Color Black Weight 23.6 lbs (11 kg) Width 18.5" (47 cm) Depth 26.2" (67 cm) Height 2.4"-3"H (6-8 cm) Model WL450 Construction Material Stainless Steel Color Black Weight 15.4 lbs (7 kg) Width 17.9" (46 cm) Depth 19.3" (49 cm) Height 31.5" (80 cm) Model WHP1500M Construction Material Stainless Steel Color Black Non-Vertical Installations Not Allowed Weight 24.9 lbs (11 kg) Width 8.7" (22 cm) Depth 8.7" (22 cm) Height 59.1" (150 cm) Model WHP1000M Construction Material Stainless Steel Color Black Non-Vertical Installations Not Allowed Wind Load 6.5 ft (2m) Above Last Support Flexural Strength-Tensile Strength 16.4 ft (5m) Maximum Spacing of Lateral Supports 9.8 ft (3m) Weight 14.8 lbs (7 kg) Width 8.7" (22 cm) Depth 8.7" (22 cm) Height 39.4" (100 cm)

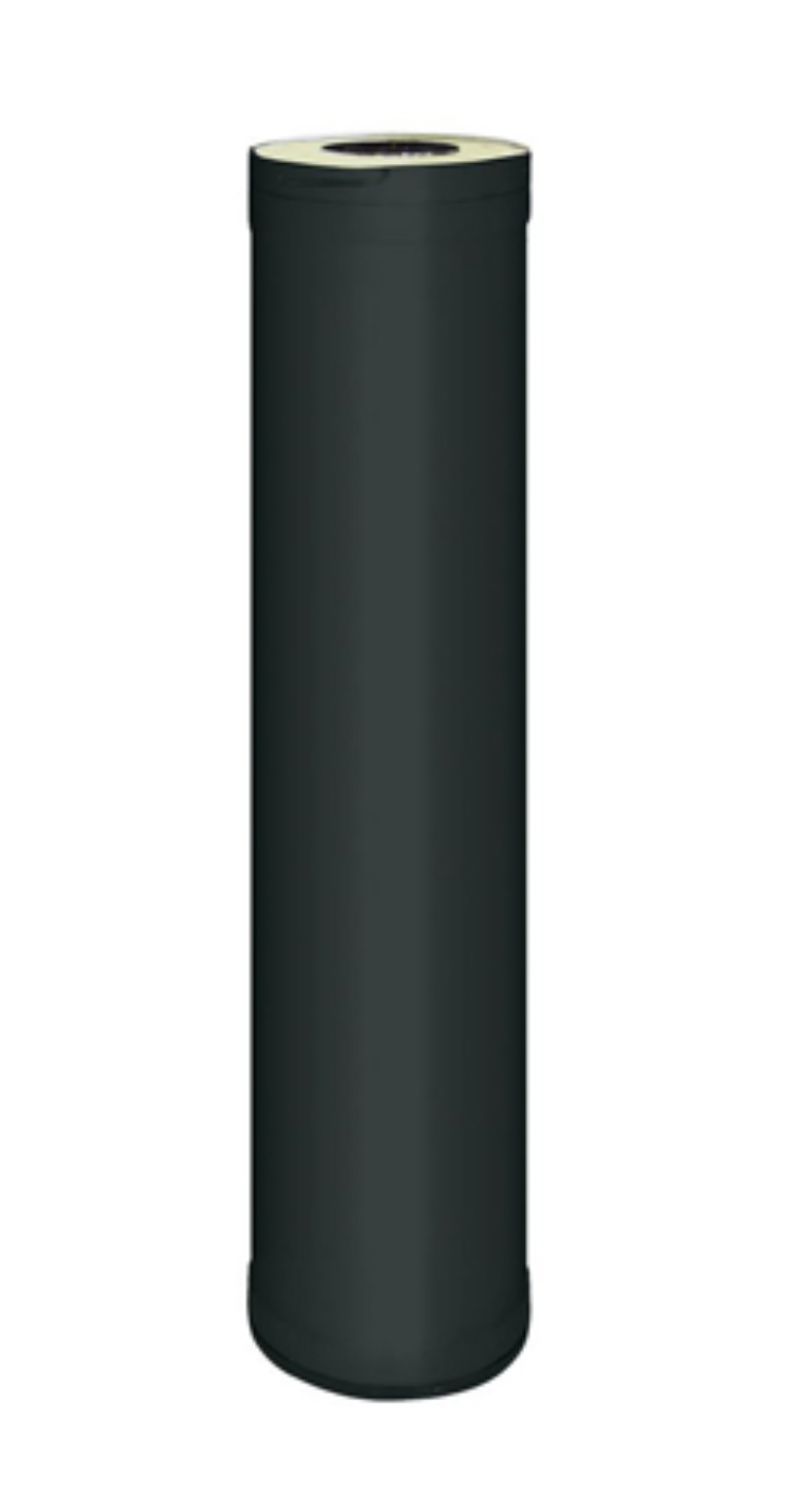

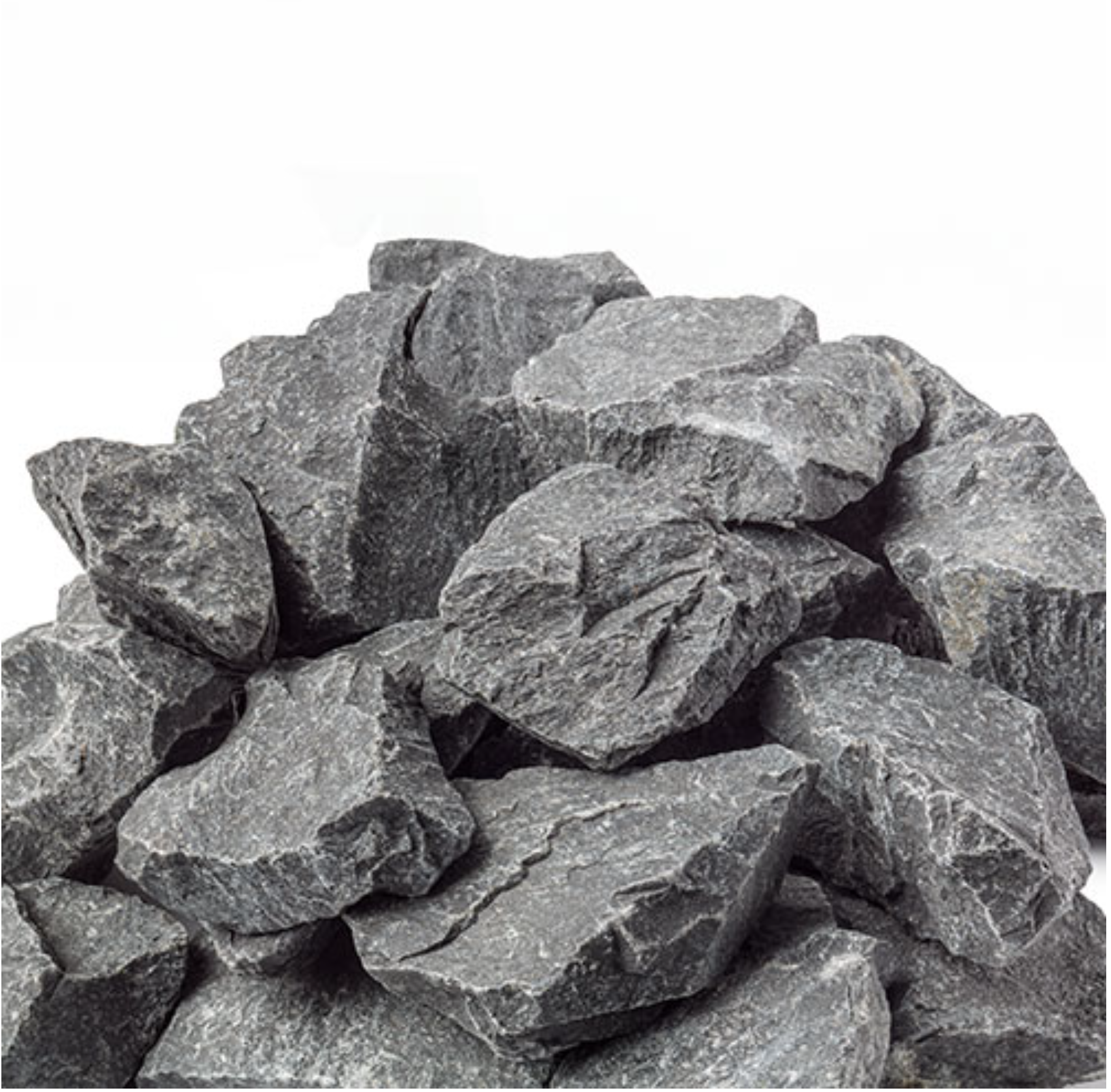

M3 Sauna Stove Sauna Stove Stove Door Ash Box Installation and Operation Manual 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use) Protective Bedding Small Protective Bedding Installation and Operation Manual 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use) Protective Sheath Protective Sheath Panel Installation and Operation Manual 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use) Chimney Kit Chimney Utility Box Non-Insulated Smoke Pipe Rain Cap Rubber Rain Flange Installation Set for Rain Flange Stainless Steel Lead-Through Flange for Ceiling Lead-Through Insulation and Protector Installation and Operation Manual 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use) Chimney Extension 1000mm Chimney Extension Installation and Operation Manual 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use) Sauna Stones 88 lbs of 4" to 6" (10-15 cm) Split-Face Stones

Download the here.
